Overview

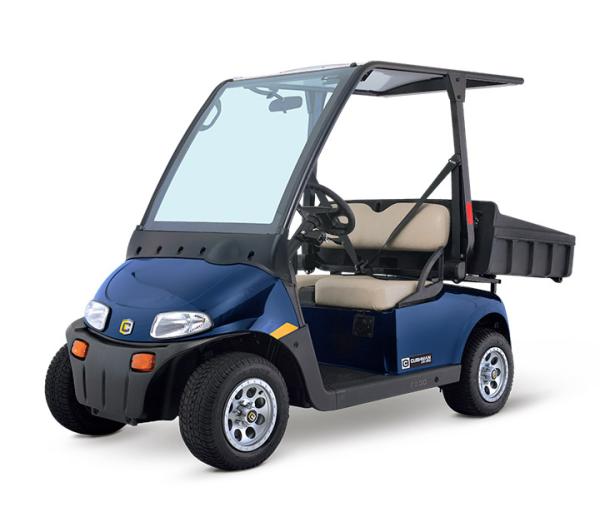

The LSV 800 features a top speed of 25 mph, getting you wherever you need to go faster than traditional utility vehicles. With an automotive glass windshield, three-point seatbelts and standard headlights, taillights and brake lights, you and your crew are equipped to arrive safely.

Specifications

  • Battery (Qty/Type): Six, 8V Deep Cycle, US Batteries
  • Battery Charger: On-board 48V PowerWise™ High Frequency
  • Body & Finish: Injection Molded TPO & Automotive Style Paint
  • Cargo Deck Capacity: 300 lb (136 kg)
  • Cargo Deck Material: Roto-molded Cross-linked Polyethylene
  • Curb Weight: 1381 lb (626 kg)
  • Drive Train: Motor Shaft Direct Drive
  • Electrical System: 48V
  • Frame: Welded Steel w/ DuraShield™ Powder Coat
  • Ground Clearance: 4.5 in (11 cm)
  • Horsepower (KW): 4.4 hp (3.3 kW)
  • Key or Pedal Start: Pedal
  • Outside Clearance Circle: 19.7 ft (6.0 m)
  • Overall Height: 71.2 in (181 cm) (w/ OPS Roof) 75.2 in (191 cm) (w/ Strobe)
  • Overall Length: 109.0 in (277 cm)
  • Overall Width: 48.5 in (123 cm)
  • Parking Brake: Automatically Applied Electromagnetic
  • Power Source: 48V AC Induction Motor
  • Rear Axle Ratio: 14.76:1 (Forward)
  • Seating Capacity: 2-Person (Bucket Seats)
  • Service Brake: 4-Wheel Hydraulic Disc w/ Motor Regen
  • Speed: 25 mph +/- 0.5 mph (40 kph +/-0.8 kph)
  • Speed Controller: 235 Amp AC Controller
  • Standard Color: Patriot Blue
  • Steering: Double Ended Rack & Pinion
  • Suspension: Independent A-Arm w/ Coil Over Shocks (Front) Mono-Leaf Springs w/ Hydraulic Shocks (Rear)
  • Tires: DOT Street Legal 205-50-10 Radial
  • Towing Capacity: 1800 lb (816 kg) Max Load
  • Transaxle: Helical Gears
  • Vehicle Load Capacity: 800 lb (363 kg)
  • Weight w/o Batteries: 893 lb (405 kg)
  • Wheel Base: 65.9 in (167 cm)
  • Wheel Track: 36.7 in (93 cm) Front 39.7 in (101 cm) Rear

Features

  • 2-Passenger Seating
  • 800-lb Vehicle Load Capacity
  • 5.9-cu-ft Cargo Bed
  • 48V AC Electric Drivetrain
