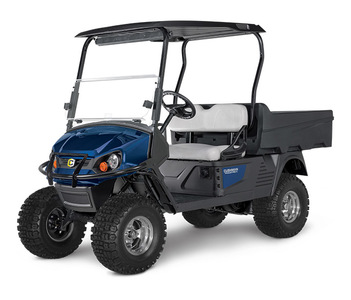

Cushman Hauler® PRO-X

Request a Quote

Request a Quote

Personal Information

Address

Equipment

Comments

Overview

The Hauler® PRO-X boasts electric power designed to stand up to any challenge, with rugged tires and extra ground clearance that’s ready to take you places other electric vehicles would never venture. And while this uncompromising performance makes a loud-and-clear statement, the 72V electric drivetrain delivers silent power right when you need it.

Specifications

  • Battery (Qty/Type): Nine, 8V Deep Cycle
  • Battery Charger: 900 Watt 72V DC
  • Bed Load Capacity: 500 lb (227 kg)
  • Body & Finish: Injection Molded TPO
  • Cargo Deck Capacity: 12-cu-ft (0.34 m3)
  • Cargo Deck Material: Roto-Molded Polyethylene
  • Curb Weight: 1513 lb (686 kg)
  • Drive Train: Motor Shaft Direct Drive
  • Electrical System: 72V
  • Frame: Welded Steel with DuraShield™ Powder Coat
  • Gear Selection: Seatwrap-Mounted Forward-Neutral-Reverse
  • Ground Clearance: 7.2 in (18.29 cm)
  • Horsepower (KW): 22.4HP (16.7 kW) - Measured at Peak Torque
  • Key or Pedal Start: Pedal
  • Outside Clearance Circle: 23.5 ft (7.2 m)
  • Overall Height: 52.5 in (133 cm) (w/o Roof) 77.0 in (195.6 cm) (w/ Struts & Roof)
  • Overall Length: 119 in (302.3 cm)
  • Overall Width: 49.4 in (125.5 cm)
  • Parking Brake: Self-Compensating, Single-Point Engagement
  • Power Source: 72V DC
  • Rear Axle Ratio: 17:01
  • Seating Capacity: 2-Person
  • Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
  • Speed: 16.5 mph ± 0.5 mph (26.6 kph ± 0.8 kph)
  • Speed Controller: 350 Amp AC
  • Standard Color: Forest Green / Patriot Blue
  • Steering: Self-Compensating Rack & Pinion
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Tires: 20 x 8.0 -10
  • Towing Capacity: 1200 lb (544 kg) max
  • Transaxle: Differential w/ Helical Gears
  • Vehicle Load Capacity: 900 lb (408 kg)
  • Weight w/o Batteries: 948 lb (430 kg)
  • Wheel Base: 77.5 in (196.9 cm)
  • Wheel Track: 38.0 in (96.5 cm) Front 38.5 in (97.8 cm) Rear

Features

  • 72V AC Electric Drivetrain
  • 12-cu-ft Cargo Bed
  • 900-lb Vehicle Load Capacity
  • 2-Passenger Seating
  • 500-lb Bed Load Capacity
  • 1,200-lb Towing Capacity
