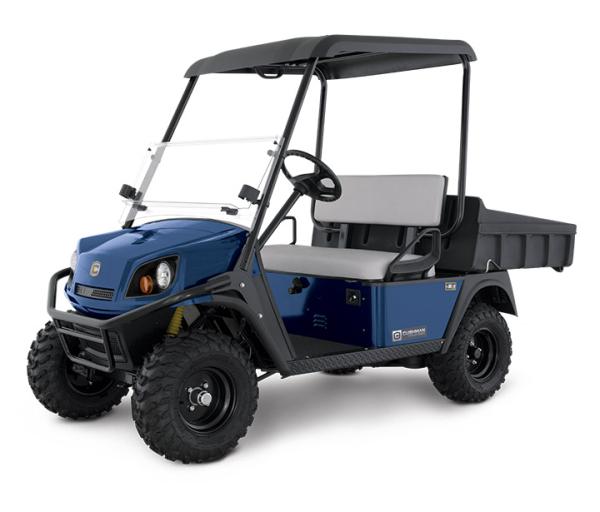

Cushman Hauler® 800X

Request a Quote

Request a Quote

Personal Information

Address

Equipment

Comments

Overview

The Hauler 800X approaches every job with the perfect mix of toughness and real-world utility. Available with your choice of a gas or electric powertrain, rugged tires and a lifted suspension, it’s built to help you get the job done.

Specifications

  • Air Cleaner: Replaceable Dry Cartridge
  • Battery (Qty/Type): One, 12V Maintenance Free
  • Bed Load Capacity: 500 lb (227kg)
  • Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
  • Cargo Deck Capacity: 5.9-cu-ft (0.17 m3)
  • Cargo Deck Material: Roto-Molded Polyethylene
  • Cooling System: Air Cooled
  • Curb Weight: 850 lb (386 kg)
  • Drive Train: Continuously Variable Transmission (CVT)
  • Electrical System: Starter/Generator. Solid State Reg.
  • Frame: Welded Steel w/ DuraShield™ Powder Coat
  • Fuel Capacity: 6.0 Gallon (22.7 L) Tank
  • Gear Selection: Forward - Reverse
  • Ground Clearance: 4.3 in (11 cm)
  • Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
  • Key or Pedal Start: Pedal
  • Lubrication: Pressurized Oil System
  • Oil Filter: Spin-On
  • Outside Clearance Circle: 18.9 ft (5.8 m)
  • Overall Height: 49.0 in (124 cm) (w/o Roof) 71.6 in (182 cm) (w/ Struts & Roof)
  • Overall Length: 103.5 in (263 cm)
  • Overall Width: 46.5 in (118 cm)
  • Parking Brake: Self-Compensating, Single-Point Engagement
  • Power Source: 4-Cycle, 24.5 ci (401cc) Cylinder
  • Rear Axle Ratio: 11.42:1(Forward) 15.78:1(Reverse)
  • Seating Capacity: 2-Person
  • Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
  • Speed: 17 mph +/- 0.5 mph (27.3 kph +/-0.8 kph)
  • Standard Color: Patriot Blue, Forest Green
  • Steering: Self-Compensating Rack & Pinion
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Tires: Turf Blk Rim 20 x 11 - 10 (4 Ply Rated) Uni-directional (Front) Turf Blk Rim 20 x 11 - 10 (4 Ply Rated) Uni-directional (Rear)
  • Towing Capacity: 500 lb (227 kg) Max Load
  • Transaxle: Differential w/ Helical Gears
  • Valve Train: Single Cylinder OHV
  • Vehicle Load Capacity: 800 lb (363 kg)
  • Wheel Base: 65.5 in (166 cm)
  • Wheel Track: 37.0 in (94 cm) Front 38.0 in (97 cm) Rear

Features

  • 400-lb Bed Load Capacity
  • 2-Passenger Seating
  • 5.9-cu-ft Cargo Bed
  • 48V Electric Drivetrain
  • 800-lb Vehicle Load Capacity
  • 500-lb Towing Capacity
  • 500-lb Bed Load Capacity
  • 13.5-hp Kawasaki® Gas Engine
