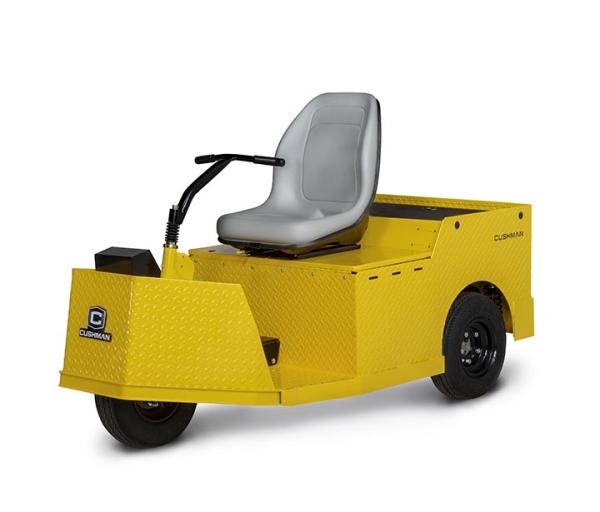

Cushman Tug™ 8k AC
Overview
Take your towing up a notch. Built for one specific job, the Tug tow tractor gives your facility the power to pull loads that were previously unmoveable. No matter the load, you can count on the Tug to pull its weight.
Specifications
- Battery (Qty/Type): Six, 8V Deep Cycle
- Battery Charger: 48V DC On-Board, 1000W
- Body & Finish: 4-way Embossed Diamond Pattern
- Cargo Deck Material: HIP Board
- Curb Weight: 936 lb (425 kg)
- Drive Train: Motor Shaft Direct Drive GEAR SELECTION
- Electrical System: 48V
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Gear Selection: Dash Mounted (Key Switch)
- Horsepower (KW): Continuous 6.7hp (5kw); Peak 15.4hp (11.5kw)
- Key or Pedal Start: Pedal
- Outside Clearance Circle: 9.0 ft (2.8 m)
- Overall Height: 37.0 in (94 cm)
- Overall Length: 76.0 in (193 cm)
- Overall Width: 34.5 in (88 cm)
- Parking Brake: Torsion Block (Front) / Coil Over Shock SERVICE BRAKE
- Power Source: 48V DC
- Rear Axle Ratio: 17.05:1
- Seating Capacity: 1-Person
- Service Brake: 2-Wheel Hydraulic Drum
- Speed: 7.8 mph +/- 0.5 mph (12.6 kph +/- 0.8 kph)
- Speed Controller: 350 AMP AC Programmable. SRO Capable
- Standard Color: Safety Yellow
- Steering: Handlebar
- Suspension: Torsion Block (Front) / Coil Over Shock
- Tires: USA Trail 4.80 x 8 (Load Range B)
- Towing Capacity: 8000 lb (3629 kg)
- Vehicle Load Capacity: 650 lbs (295 kg)
- Weight w/o Batteries: 508 lb (230 kg)
- Wheel Base: 52.5 in (133 cm)
- Wheel Track: N/A Front / 29.7 in (75 cm) Rear
Features
- 4.9-sq-ft Cargo Deck
- 650-lb Vehicle Load Capacity
- 48V AC Electric Drivetrain
- 8,000-lb Towing Capacity
