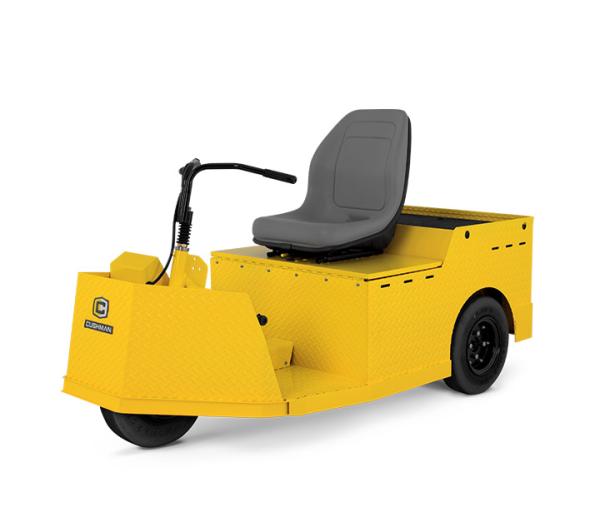

Cushman Tug™
Overview
Take your towing up a notch. Built for one specific job, the Tug tow tractor gives your facility the power to pull loads that were previously unmoveable. With two models available, you can pick the workhorse that best fits your facility.
Specifications
- Battery (Qty/Type): Six, 6V Deep Cycle
- Battery Charger: 36V DC On-Board
- Body & Finish: 4-way Embossed Diamond Pattern
- Cargo Deck Material: Heavy Duty Plywood
- Curb Weight: 940 lb (426 kg)
- Drive Train: Triple ‘V’ Belt
- Electrical System: 36V DC
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Gear Selection: Dash Mounted
- Horsepower (KW): 11.1 hp (8.28 kW) @ 1942 rpm
- Key or Pedal Start: Pedal
- Outside Clearance Circle: 9.0 ft (2.7 m)
- Overall Height: 37.0 in (94 cm)
- Overall Length: 76.0 in (193 cm)
- Overall Width: 34.5 in (88 cm)
- Parking Brake: Hand Lever, Mechanical Rear Brakes
- Power Source: 36V DC SepEx
- Rear Axle Ratio: 22.98:1
- Seating Capacity: 1-Person
- Service Brake: 2-Wheel Hydraulic Drum
- Speed: Up to 7.8 mph (12.6 kmh)
- Speed Controller: 300 Amp Programmable. SRO Capable
- Standard Color: Safety Yellow
- Steering: Handlebar
- Suspension: Torsion Block (Front) Coil Springs & Hydraulic Shock Absorber (Rear)
- Tires: USA Trail 4.80 x 8 (Load Range B)
- Towing Capacity: 5000 lb (2267 kg)
- Vehicle Load Capacity: 650 lbs (295 kg)
- Weight w/o Batteries: 571 lb (259 kg)
- Wheel Base: 52.5 in (133 cm)
- Wheel Track: 37.0 in (94 cm) Front 29.7 in (75 cm) Rear
Features
- 8,000-lb Towing Capacity
- 36V Electric Drivetrain
- 650-lb Vehicle Load Capacity
- 4.9-sq-ft Cargo Deck
- 5,000-lb Towing Capacity
