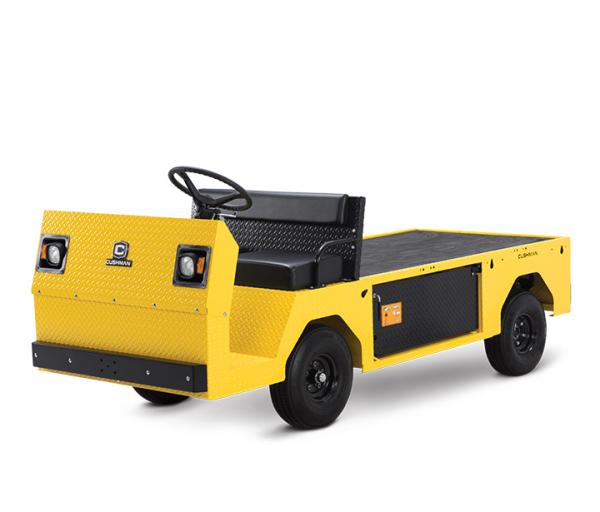

Cushman Titan XD
Overview
It's time to let the numbers do the talking. Up to 3,000 pounds of hauling strength and the muscle to tow up to 5,000 pounds. Put it together and you'll see that the Titan XD burden carrier is blue-collar grit wrapped in diamond-plated steel.
Specifications
- Battery (Qty/Type): Eight, 6V Deep Cycle, Swing Out
- Battery Charger: 48V On-Board, Delta Q 120V AC, UL & CSA
- Bed Load Capacity: 2600 lb (1179 kg); 1600 lb (726 kg) EE | 2200 lb (998 kg); 1200 lb (544 kg) EE
- Body & Finish: Diamond Plate Patterned. Poly Primer & Acrylic
- Cargo Deck Capacity: 41.5 in (105) W x 75in (191 cm) L | 41.5 in (105) W x 53.5in (136 cm) L
- Cargo Deck Material: Heavy Duty Plywood
- Curb Weight: 1752 lb (795 kg) | 1720 lb (780 kg)
- Drive Train: Motor Shaft Direct Drive
- Electrical System: 48V DC
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Gear Selection: Dash-Mounted Forward-Neutral-Reverse
- Ground Clearance: 5.0 in (12 cm)
- Horsepower (KW): 17.2 hp (12.8 kw) Peak
- Key or Pedal Start: Pedal
- Outside Clearance Circle: 21.25 ft (6.47 m)
- Overall Height: 47.0 in (119 cm)
- Overall Length: 114.0 in (290 cm)
- Overall Width: 44.5 in (113 cm)
- Parking Brake: Hand-Operated
- Power Source: 48V DC Shunt Wound
- Rear Axle Ratio: 14.9:1 (17:1 EE)
- Seating Capacity: 2-Person or 4-Person
- Service Brake: Front & Rear Hydraulic
- Speed: 14 mph +/- 0.5 mph (21 kph +/-0.8 kph); 10 mph +/- 0.5 (16 kph +/- 0.8 kph) EE
- Speed Controller: Solid State 400 Amp Rated
- Standard Color: Safety Yellow
- Steering: Rack & Pinion
- Suspension: Independent, Transverse Leaf Spring, Shocks (Front) Leaf Springs and Shock Absorbers (Rear)
- Tires: 5.70 x 8 (Load Range C)
- Towing Capacity: 5000 lb (2268 kg); 3000 lb (1361 kg) EE
- Transaxle: Differential w/ Helical Gears
- Vehicle Load Capacity: 3000 lb (1361 kg) 2000 lb (907 kg) EE
- Weight w/o Batteries: 1208 lb (548 kg) | 1225 lb (569 Kg)
- Wheel Base: 72.0 in (183 cm)
- Wheel Track: 38.0 in (97 cm) Front 38.0 in (97 cm) Rear
Features
- 5,000-lb Towing Capacity
- 48V Electric Drivetrain
- 3,000-lb Vehicle Load Capacity
- 2- or 4-Passenger Seating
