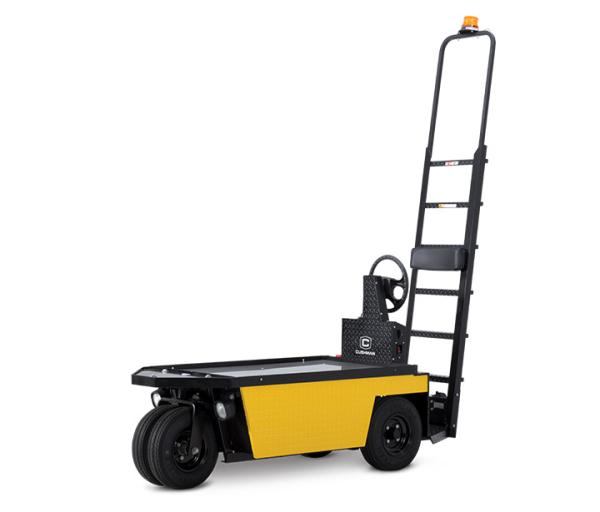

Cushman Stock Chaser
Overview
With the Stock Chaser, every nook and cranny of your facility is accessible fast. Navigate tight corners and narrow aisles with the agile design. Then, climb the integrated ladder to retrieve items from up above. When other vehicles refuse to make the trek, the Stock Chaser burden carrier does not relent.
Specifications
- Battery (Qty/Type): Four, 6V Deep Cycle
- Battery Charger: 24V, 100-240V AC On-Board, UL & CE
- Bed Load Capacity: 750 lb (340 kg)
- Body & Finish: Diamond Plate Poly Primer and Acrylic
- Cargo Deck Capacity: 9.6-sq-ft
- Cargo Deck Material: Plywood
- Curb Weight: 810 lb (367 kg)
- Drive Train: Motor Shaft Direct Drive
- Electrical System: 24V
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Gear Selection: Dash-Mounted Forward-Neutral-Reverse
- Ground Clearance: 4.0 in (10 cm)
- Horsepower (KW): 8.94 hp (6.67 kW) @ 1490 rpm
- Key or Pedal Start: Pedal
- Outside Clearance Circle: 12.4 ft (3.8 m)
- Overall Height: 48.0 in (122 cm) (w/o Ladder) 78.0 in (198 cm) (w/ 4-step Ladder) 97.0 in (246 cm) (w/ 6-step Ladder)
- Overall Length: 88.4 in (225 cm)
- Overall Width: 29.5 in (75 cm)
- Parking Brake: Automatic
- Power Source: 24V DC Series Wound
- Rear Axle Ratio: 14.78:1
- Seating Capacity: 1-Person (Standing)
- Service Brake: Rear Wheel Mechanical Drum
- Speed: 8.5 mph max (13.7 kph max)
- Speed Controller: Solid State 275 Amp Rated
- Standard Color: Safety Yellow
- Steering: Direct Chain & Linkage
- Suspension: Solid (Front & Rear)
- Tires: 4.80 x 8 (Load Range B)
- Towing Capacity: Normal Draw Bar: 60 lb (27.2 kg) Max Draw Bar Pull: 715 lb (324 kg)
- Transaxle: Differential w/ Helical Gears
- Vehicle Load Capacity: 1000 lb (454 kg)
- Weight w/o Batteries: 522 lb (237 kg)
- Wheel Base: 48.3 in (123 cm)
- Wheel Track: 24.75 in (63 cm) Rear
Features
- 1000-lb Vehicle Load Capacity
- 9.6-sq-ft Cargo Deck
- 24V Electric Drivetrain
