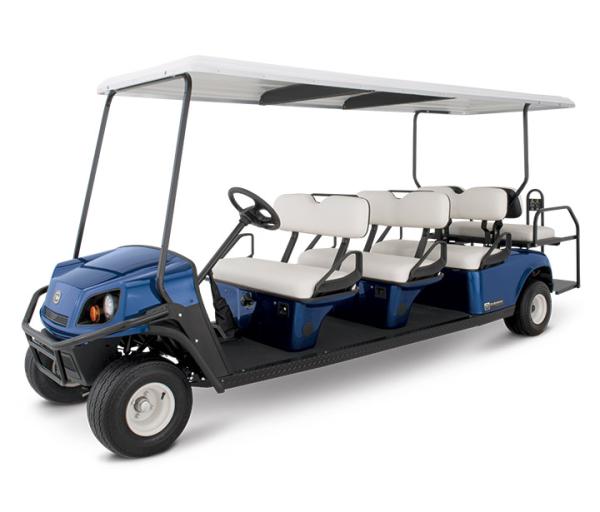

Designed for safety and comfort, the Shuttle™ 8 personnel transport vehicle delivers all the space you need. Features like a large canopy, ergonomically-designed seating, and dependable powertrain options keep guests and workers happy.
Specifications
- Air Cleaner: Industrial Rated Dry Filter
- Battery (Qty/Type): Starter/Generator. Solid State Regulator
- Battery Charger: One, 12V Maintenance Free
- Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
- Cargo Deck Capacity: 400 lb (181 kg)
- Cooling System: Air Cooled
- Curb Weight: 1265 lb (574 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Frame: Welded Steel w/ DuraShield & Powder Coat
- Fuel Capacity: 5.8 Gallon (22.0 L) Tank
- Gear Selection: Forward - Reverse
- Ground Clearance: 4.3 in (11 cm)
- Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Overall Height: 45.5 in (116 cm) (w/o Roof) 76.0 in (193 cm) (w/ Struts & Roof)
- Overall Length: 167.5 in (425 cm)
- Overall Width: 49.5 in (126 cm)
- Parking Brake: Self-Compensating, Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc) Low Emission
- Rear Axle Ratio: 11.42:1(Forward) 13.78:1(Reverse)
- Seating Capacity: 8-Person
- Service Brake: 4-Wheel Hydraulic Brakes Front Disk, Rear Drum
- Speed: 16 mph +/- 0.5 mph (26 kph +/-0.8 kph)
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: Kenda 18 x 8.50 - 8 (4 Ply Rated)
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 1600 lb (727 kg)
- Wheel Base: 123.4 in (313 cm)
- Wheel Track: 36.0 in (91 cm) Front 38.0 in (97 cm) Rear
Features
- 1,600-lb Vehicle Load Capacity
- 13.5-hp Kawasaki® Gas Engine
- 48V Electric Drivetrain
- 8-Passenger Seating
