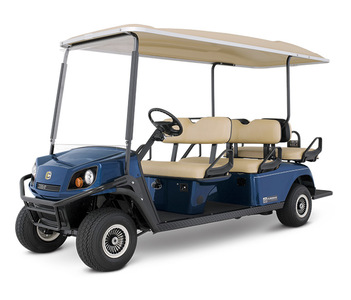

Take your people-moving power to the next level with the six-passenger Shuttle™ 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.
Specifications
- Air Cleaner: Industrial Rated Dry Filter
- Battery Charger: One, 12V Maintenance Free
- Cooling System: Air Cooled
- Curb Weight: 1164 lb (528 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical System: Starter/Generator. Solid State Reg.
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 6 Gallon (22.7 L) Tank
- Gear Selection: Forward - Reverse
- Ground Clearance: 4.3 in (11 cm)
- Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Overall Height: 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof)
- Overall Length: 136.0 in (345 cm)
- Overall Width: 48.5 in (123 cm)
- Parking Brake: Self-Compensating, Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc) Low Emission
- Rear Axle Ratio: 11.42:1(Forward) 15.78:1(Reverse)
- Seating Capacity: 6-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 16 mph +/- 0.5 mph (26 kph +/-0.8 kph)
- Speed Controller: -
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: Links 18 x 8.5 - 8 (4 Ply Rated)
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 1200 lb (544 kg)
- Wheel Base: 93.5 in (237 cm)
- Wheel Track: 34.2 in (87 cm) Front 38.0 in (97 cm) Rear
Features
- 6-Passenger Seating
- 13.5-hp Kawasaki Gas Engine
- 1,200-lb Vehicle Load Capacity
- 48V Electric Drivetrain
Additional Information
Model Table
Shuttle 6 Gas | Shuttle 6 Electric | |
---|---|---|
Body & Finish | Injection Molded TPO | Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) |
Power Source | 4-Cycle, 24.5 ci (401cc) Low Emission | 48V DC |
Valve Train | Single Cylinder OHV | 18.1 hp (13.5 kW) Intermittent |
Horsepower (KW) | 13.5 hp (10.1 kW) Exceeds SAE J1940 Std. | 48V |
Electrical System | Starter/Generator. Solid State Reg. | Eight, 6V Deep Cycle |
Battery Charger | One, 12V Maintenance Free | 48V DC Delta Q, 120/230V AC, UL & CSA |
Air Cleaner | Industrial Rated Dry Filter | – |
Lubrication | Pressurized Oil System | – |
Oil Filter | Spin-On | – |
Cooling System | Air Cooled | – |
Fuel Capacity | 6 Gallon (22.7 L) Tank | – |
Speed Controller | – | 400 Amp Precision Drive System (PDS) |
Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
Gear Selection | Forward – Reverse | Dash-Mounted Forward-Neutral-Reverse |
Rear Axle Ratio | 11.42:1(Forward) 15.78:1(Reverse) | 14.7:1 |
Weight w/o Batteries | – | 890 lb (403 kg) |
Curb Weight | 1164 lb (528 kg) | 1385 lb (628 kg) |
Outside Clearance Circle | – | 25.5 ft (7.8 m) |
Speed | 16 mph +/- 0.5 mph (26 kph +/-0.8 kph) | 13 mph +/- 0.5 mph (21 kph +/-0.8 kph) |
