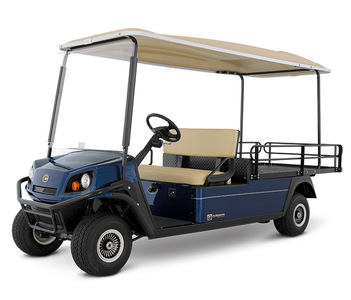

This vehicle was built for big hauling and big possibilities with a 20.9-sq-ft cargo deck. Whether you’re hauling tools and supplies or luggage and catering, the Shuttle™ 2 personnel transport vehicle makes sure that you’re driven to get it done right.

Specifications

  • Air Cleaner: Industrial Rated Dry Filter
  • Battery (Qty/Type): One, 12V Maintenance Free
  • Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
  • Cargo Deck Capacity: 20.9-sq-ft (1.94 m2)
  • Cooling System: Air Cooled
  • Drive Train: Continuously Variable Transmission (CVT)
  • Electrical System: Starter/Generator. Solid State Regulator
  • Frame: Welded Steel w/ DuraShield™ Powder Coat
  • Fuel Capacity: 6 Gallon (22.7 L) Tank
  • Gear Selection: Forward - Reverse
  • Ground Clearance: 4.75 in (12 cm)
  • Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
  • Key or Pedal Start: Pedal
  • Lubrication: Pressurized Oil System
  • Oil Filter: Spin-On
  • Overall Height: 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof)
  • Overall Length: 141.0 in (358 cm)
  • Overall Width: 48.5 in (123 cm)
  • Parking Brake: Self-Compensating, Single-Point Engagement
  • Power Source: 4-Cycle, 24.5 ci (401cc) Low Emission
  • Rear Axle Ratio: 11.42:1(Forward) 15.78:1(Reverse)
  • Seating Capacity: 2-Person
  • Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
  • Speed: 16 mph +/- 0.5 mph (26 kph +/-0.8 kph)
  • Standard Color: Patriot Blue
  • Steering: Self-Compensating Rack & Pinion
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Tires: Links 18 x 8.5 - 8 (4 Ply Rated)
  • Transaxle: Differential w/ Helical Gears
  • Valve Train: Single Cylinder OHV
  • Vehicle Load Capacity: 1200 lb (544 kg)
  • Weight w/o Batteries: 926 lb (420 kg)
  • Wheel Base: 93.5 in (237 cm)
  • Wheel Track: 34.2 in (87 cm) Front 38.0 in (97 cm) Rear

Features

  • 13.5-hp Kawasaki Gas Engine
  • 1,000-lb Vehicle Load Capacity
  • 20.9-sq-ft Cargo Deck
  • 1,200-lb Vehicle Load Capacity
  • 48V Electric Drivetrain
  • 2-Passenger Seating
