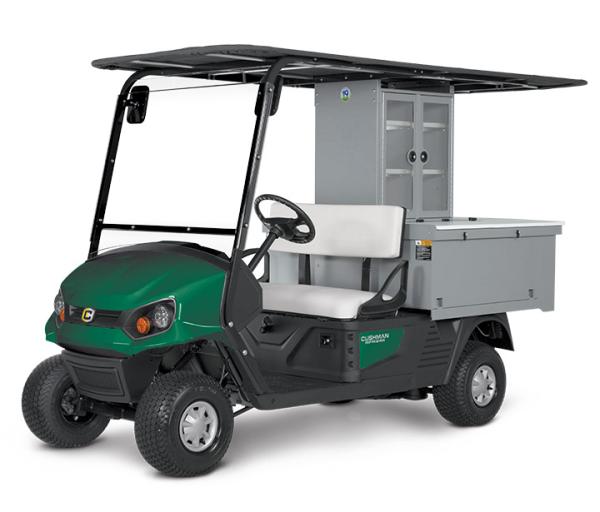

The Refresher Oasis was built for long days and busy events. With its 500-can capacity and enough merchandising space for your most popular items, stopping to restock is yesterday’s problem.

Specifications

  • Air Cleaner: Industrial Rated Dry Filter
  • Battery (Qty/Type): One, 12V Maintenance Free
  • Body & Finish: Injection Molded TPO, Painted
  • Cargo Deck Capacity: 6.7 cu ft (.19 m3) Merchandising 500 Can Beverage Capacity
  • Cargo Deck Material: 5000 Series Aluminum - Super Durable TGIC Polyester Powder Coating
  • Cooling System: Air Cooled
  • Curb Weight: 1175 lb (532.971 kg)
  • Drive Train: Continuously Variable Transmission (CVT)
  • Electrical System: Starter/Generator, Solid State Regulator
  • Frame: Welded Steel w/ DuraShield™ Powder Coat
  • Fuel Capacity: 6.0 Gallon (22.7 L) Tank
  • Gear Selection: Forward-Reverse
  • Ground Clearance: 3.5 in (9.0 cm)
  • Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
  • Key or Pedal Start: Pedal
  • Lubrication: Pressurized Oil System
  • Oil Filter: Spin-On
  • Outside Clearance Circle: 21.5 ft (6.5 m)
  • Overall Height: 47.4 (120.40 cm) (No Canopy) 76.0in (186.18 cm) (Canopy)
  • Overall Length: 117.0 in (297.18 cm)
  • Overall Width: 50.8 in (129.032 cm)
  • Parking Brake: Self-Compensating Single Point Engagement
  • Power Source: 4 cycle, 24.5 cu in (401 cc)
  • Rear Axle Ratio: 16.53:1 (Forward) 16.81:1 (Reverse)
  • Seating Capacity: 2 Person
  • Service Brake: Rear Wheel Mechanical Self-Adjusting Drum
  • Speed: 11 mph, 0.5 mph (17.7 kph, 0.8 kph) Forward 10 mph, 0.5 mph (16 kph, 0.8 kph) Reverse
  • Standard Color: Forest Green
  • Steering: Self-compensating Rack & Pinion
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Tires: 18 x 8.5 & 8
  • Transaxle: Differential with Helical Gears
  • Valve Train: Single Cylinder OHV
  • Vehicle Load Capacity: 1066 lb (483 kg)
  • Weight w/o Batteries: 1135 lb (514.83 kg)
  • Wheel Base: 76.0 in (193.04 cm)
  • Wheel Track: 35.0 in (89 cm) Front 38.5 in (98 cm) Rear

Features

  • 500-Can Capacity
  • 13.5-hp Gas Engine
  • 4 Cold Storage Drawers
  • 12.1-sq-ft Work Space
  • 3.4-cu-ft Trash Capacity
  • 6.7-cu-ft of Merchandising

Additional Information

Model Table

  Refresher Oasis Gas
Frame Welded Steel w/ DuraShield™ Powder Coat
Body & Finish Injection Molded TPO, Painted
Standard Color Forest Green
Overall Length 117.0 in (297.18 cm)
Overall Width 50.8 in (129.032 cm)
Overall Height 47.4 (120.40 cm) (No Canopy) 76.0in (186.18 cm) (Canopy)
Wheel Base 76.0 in (193.04 cm)
Wheel Track 35.0 in (89 cm) Front 38.5 in (98 cm) Rear
Ground Clearance 3.5 in (9.0 cm)
Cargo Deck Capacity 6.7 cu ft (.19 m3) Merchandising 500 Can Beverage Capacity
Cargo Deck Material 5000 Series Aluminum – Super Durable TGIC Polyester Powder Coating
Power Source 4 cycle, 24.5 cu in (401 cc)
Valve Train Single Cylinder OHV
Horsepower (KW) 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
Electrical System Starter/Generator, Solid State Regulator
Battery (Qty/Type) One, 12V Maintenance Free
Key or Pedal Start Pedal
Air Cleaner Industrial Rated Dry Filter
Lubrication Pressurized Oil System
Oil Filter Spin-On
Cooling System Air Cooled
Fuel Capacity 6.0 Gallon (22.7 L) Tank
Drive Train Continuously Variable Transmission (CVT)
Transaxle Differential with Helical Gears
Gear Selection Forward-Reverse
Rear Axle Ratio 16.53:1 (Forward) 16.81:1 (Reverse)
Seating Capacity 2 Person
Weight w/o Batteries 1135 lb (514.83 kg)
Curb Weight 1175 lb (532.971 kg)
Vehicle Load Capacity 1066 lb (483 kg)
Outside Clearance Circle 21.5 ft (6.5 m)
Speed 11 mph ± 0.5 mph (17.7 kph ± 0.8 kph) Forward 10 mph ± 0.5 mph (16 kph ± 0.8 kph) Reverse
Steering Self-compensating Rack & Pinion
Suspension Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
Service Brake Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Self-Compensating Single Point Engagement
Tires 18 x 8.5 – 8
