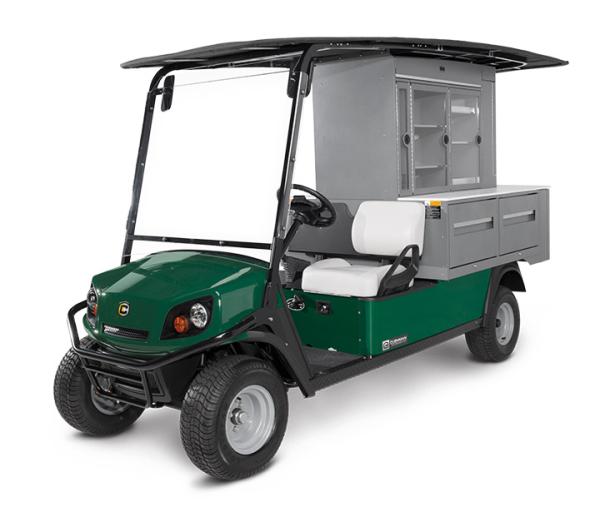

The Refresher® FS4™ with FlexServe™ Technology is the ultimate crowd pleaser for golfers and golf professionals alike. That’s because it provides an unprecedented combination of storage and flexibility, allowing you to elevate expectations on and off the course.

Specifications

  • Air Cleaner: Industrial Rated Dry Filter
  • Battery (Qty/Type): One, 12V Maintenance Free
  • Body & Finish: Injection Molded TPO, Painted (Front) Steel. Base Coat/Clear Coat (Rear)
  • Cargo Deck Capacity: 21.1 cu ft (.59 m3) Merchandising 11.1 cu ft (.31 m3) Cold Storage
  • Cargo Deck Material: 5000 Series Aluminum - Super Durable TGIC Polyester Powder Coating
  • Cooling System: Air Cooled
  • Curb Weight: 1508 lb (684 kg)
  • Drive Train: Continuously Variable Transmission (CVT)
  • Electrical System: Starter/Generator, Solid State Regulator
  • Frame: Welded Steel w/ DuraShield™ Powder Coat
  • Fuel Capacity: 6.0 Gallon (22.7 L) Tank
  • Gear Selection: Forward-Reverse
  • Ground Clearance: 4.5 in (11 cm)
  • Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
  • Key or Pedal Start: Pedal
  • Lubrication: Pressurized Oil System
  • Oil Filter: Spin-On
  • Outside Clearance Circle: 26 & 8 Left 252 Right
  • Overall Height: 49.0 in (124 cm) (No Canopy) 80.0 in (203 cm) (Canopy)
  • Overall Length: 147.0 in (373 cm)
  • Overall Width: 54.0 in (137 cm)
  • Parking Brake: Mechanical Hand Brake
  • Power Source: 4 cycle, 24.5 cu in (401 cc)
  • Rear Axle Ratio: 17.2:1 (Forward), 17.1:1 (Reverse)
  • Seating Capacity: 1-Person Std. 2-Person Optional
  • Service Brake: Four Wheel Hydraulic Front Disc/Rear Drum
  • Speed: 12 mph +/- 0.5 mph (19 kph +/-0.8 kph) Forward 11 mph +/- 0.5 mph (17 kph +/-0.8 kph) Reverse
  • Standard Color: Forest Green
  • Steering: Self-compensating Rack & Pinion
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Heavy Duty Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Tires: Load Star 205/65-10
  • Transaxle: Differential with Helical Gears
  • Valve Train: Single Cylinder OHV
  • Vehicle Load Capacity: 1015 lb (460 kg)
  • Weight w/o Batteries: 1470 lb (661 kg)
  • Wheel Base: 93.5 in (237 cm)
  • Wheel Track: 39.63 in (101 cm) Front 39.5 in (100 cm)

Features

  • 21.1-cu-ft of Merchandising
  • 13-hp Gas Engine
  • 13-sq-ft Work Space
  • 11.1-cu-ft Drawer Capacity
  • 4 Cold Storage Drawers
