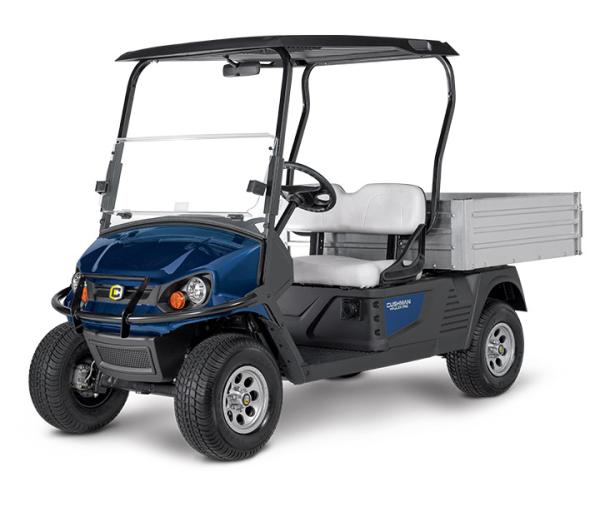

Cushman Hauler® PRO

Request a Quote

Request a Quote

Personal Information

Address

Equipment

Comments

Overview

It’s time to raise your expectations of electric-powered vehicles. With a 72V AC drivetrain that offers the hauling and hillclimbing power you need, the Hauler® PRO has the capacity to outperform its gas-powered competitors. Couple that with optional IntelliBrake™ technology, silent operation and zero-emissions, and the Hauler PRO quietly turns skeptics into believers.

Specifications

  • Battery (Qty/Type): Nine, 8V Deep Cycle
  • Battery Charger: 900 Watt 72V DC
  • Bed Load Capacity: 800 lb (363 kg)
  • Body & Finish: Injection Molded TPO
  • Cargo Deck Capacity: 12-cu-ft (0.34 m3)
  • Cargo Deck Material: Roto-Molded Polyethylene
  • Curb Weight: 1475 lb (669 kg)
  • Drive Train: Motor Shaft Direct Drive
  • Electrical System: 72V
  • Frame: Welded Steel with DuraShield™ Powder Coat
  • Gear Selection: Forward-Neutral-Reverse
  • Ground Clearance: 4.5 in (11.4 cm)
  • Horsepower (KW): 22.4HP (16.7 kW) - Measured at Peak Torque
  • Key or Pedal Start: Pedal
  • Outside Clearance Circle: 21.5 ft (6.6 m)
  • Overall Height: 46.5 in (118 cm) (w/o Roof) 70.5 in (179.1 cm) (w/ Struts & Roof)
  • Overall Length: 115 in (292.1cm)
  • Overall Width: 49.4 in (125.5 cm)
  • Parking Brake: Self-Compensating, Single-Point Engagement
  • Power Source: 72V DC
  • Rear Axle Ratio: 17:01
  • Seating Capacity: 2-Person
  • Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
  • Speed: 14.5 mph ± .05 mph (23.3 kph ± 0.8 kph)
  • Speed Controller: 350 Amp AC
  • Standard Color: Forest Green / Patriot Blue
  • Steering: Self-Compensating Rack & Pinion
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Tires: 18 x 8.5-8
  • Tpwing Capacity: 1500 lb (680 kg) max
  • Transaxle: Differential w/ Helical Gears
  • Vehicle Load Capacity: 1200 lb (544 kg)
  • Weight w/o Batteries: 910 lb (413 kg)
  • Wheel Base: 76 in (193 cm)
  • Wheel Track: 35 in (88.9 cm) Front 38.5 in (97.8 cm) Rear

Features

  • 12-cu-ft Cargo Bed
  • 800-lb Bed Load Capacity
  • 2-Passenger Seating
  • 1,500-lb Towing Capacity
  • 1,200-lb Vehicle Load Capacity
  • 72V AC Electric Drivetrain
