Overview

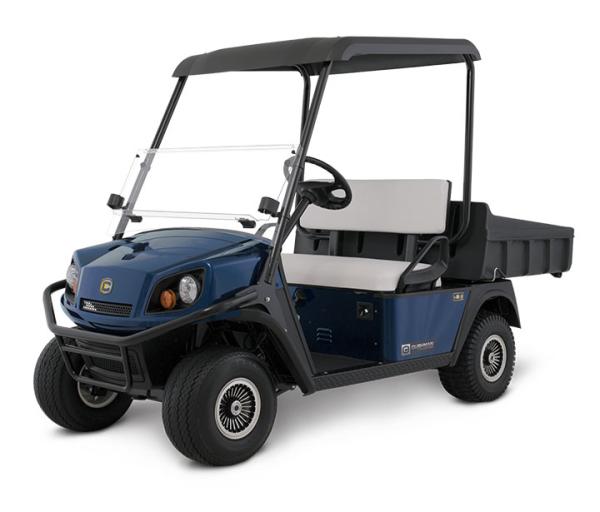

The most respected workers have a reputation for getting the job done day in and day out – like the dependable Hauler® 800. Available with a gas or electric powertrain, it delivers the practical power you need to knock down your to-do list.
Specifications
- Air Cleaner: Industrial Rated Dry Filter
- Battery (Qty/Type): One, 12V Maintenance Free
- Bed Load Capacity: 500 lb (226 kg)
- Body & Finish: Injection Molded TPO (Front) Steel Polyester Powder Coat (Rear)
- Cargo Deck Capacity: 5.9-cu-ft (0.17 m3)
- Cargo Deck Material: Roto-Molded Polyethylene
- Cooling System: Air Cooled
- Curb Weight: 895 lb (406 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical Systems: Starter/Generator. Solid State Reg.
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 6.0 Gallon (22.7 L) Tank
- Gear Selection: Forward - Reverse
- Ground Clearance: 4.3 in (11 cm)
- Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 18.9 ft (5.8 m)
- Overall Height: 46.5 in (118 cm) (w/o Roof) 70.0 in (178 cm) (w/ Struts & Roof)
- Overall Length: 107.0 in (272 cm)
- Overall Width: 49.5 in (126 cm)
- Parking Brake: Self-Compensating, Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc) Cylinder
- Rear Axle Ratio: 11.42:1(Forward) 15.78:1(Reverse)
- Seating Capacity: 2-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 14 mph +/- 0.5 mph (22.5 kph +/-0.8 kph)
- Standard Color: Patriot Blue, Forest Green
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: Links 18 x 8.50 - 8 (4 Ply Rated) (Front) Turf Savers 18 x 8.50 - 8 (Load Range B) (Rear)
- Towing Capacity: 720 lb (327 kg) Max Load
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 800 lb (362 kg)
- Wheel Base: 65.5 in (166 cm)
- Wheel Track: 37.0 in (94 cm) Front 38.0 in (97 cm) Rear
Features
- 5.9-cu-ft Cargo Bed
- 500-lb Bed Load Capacity
- 800-lb Vehicle Load Capacity
- 13.5-hp Kawasaki® Gas Engine
- 48V Electric Drivetrain
- 2-Passenger Seating
