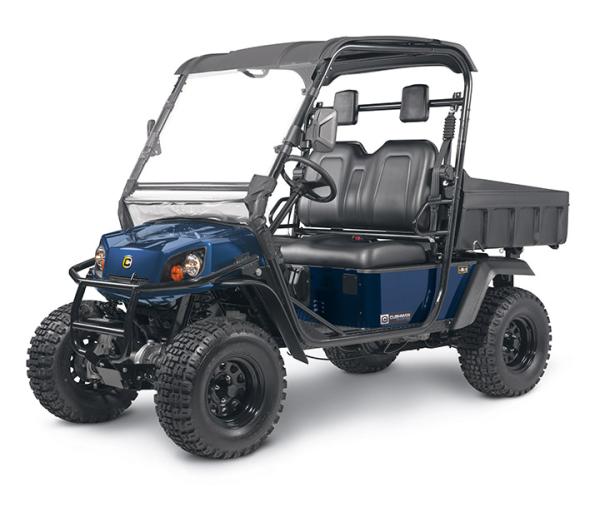

Cushman Hauler® 4x4 Gas
Overview
On some jobsites, 4WD power is a daily necessity. On others, it's just an occasional need. The Hauler 4x4 Gas has you covered either way, with user-selectable 4WD and a 28-hp Subaru gas engine. With other rugged-ready features like four-wheel independent suspension, front brush guard and all-terrain tires, it's built to handle unforgiving off-road paths.
Specifications
- Air Cleaner: Dry Cartridge w/ Pre-Filter
- Battery (Qty/Type): One, 12V Maintenance Free
- Bed Load Capacity: 800 lb (363 kg)
- Body & Finish: Injection Molded TPO (Front) Galvanized Steal Powder Coat (Body)
- Cargo Deck Capacity: 9.6-cu-ft (0.27 m3)
- Cargo Deck Material: Roto-Molded Polyethylene
- Cooling System: Air Cooled
- Curb Weight: 1370 lb (621 kg)
- Drive Train: Automatic, Continuously Variable Transmission (CVT) Manual Locking Differentials (front and rear)
- Electrical System: Rated Starter/Generator, Solid-State Regulator
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 5.3 gallon (20 L) Tank
- Gear Selection: Dash Mounted Forward-Neutral-Reverse
- Ground Clearance: 7 in (17.8 cm)
- Horsepower (KW): 28 hp (20.8 kW)
- Key or Pedal Start: Key
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 33.2 ft (10.1 m)
- Overall Height: 76 in (193 cm)
- Overall Length: 115.5 in (293.4 cm)
- Overall Width: 54.5 in (138.4 cm)
- Parking Brake: Hand Operated
- Power Source: 4-cycle, 43.9 ci (720 cc), EFI
- Rear Axle Ratio: 14.38:1 (forward); 14.36 (reverse)
- Seating Capacity: 2-Person
- Service Brake: 4-Wheel Hydraulic Disc Brakes
- Speed: 25 mph (40.2 kph)
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Independent MacPherson Strut
- Tires: Terra-Trac 25 x 10 - 12
- Towing Capacity: 1200 lb (544 kg) max
- Transaxle: Differential with Helical Gears, Ground Speed Governor, Forward/Reverse
- Valve Train: V Twin Cylinder OHV
- Vehicle Load Capacity: 1200 lb (544 kg)
- Wheel Base: 81.5 in (207 cm)
- Wheel Track: 43.4 in (110 cm) Front 44.4 in (113 cm) Rear
Features
- 2-Passenger Seating
- 1,200-lb Vehicle Load Capacity
- 28-hp Subaru EFI Gas Engine
- 800-lb Bed Load Capacity
- 9.6-cu-ft Cargo Bed
- 1,200-lb Towing Capacity
