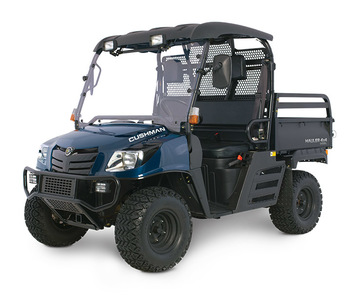

Cushman Hauler® 4x4 Diesel
Overview
This is what an unrelenting work ethic looks like. By combining a 22-hp diesel engine with a 1,600-lb total load capacity, the Hauler 4X4 Diesel gives you the strength to take on any job. Four-wheel independent suspension, user-selectable 4WD and all-terrain tires ensure it's ready for whatever task lies ahead.
Specifications
- Air Cleaner: Dry-Cyclone Type
- Battery (Qty/Type): One, 12 Volt (690 CCA @ 0° F)
- Bed Load Capacity: 1102 lb (500 kg)
- Body & Finish: Injection Molded Body
- Cargo Deck Capacity: 14.3-cu-ft (0.40 m3)
- Cargo Deck Material: Metal
- Cooling System: Liquid Cooled
- Curb Weight: 1732 lb (785 kg)
- Drive Train: Belt, Continuously Variable Transmission (CVT)
- Electrical System: Starter / Alternator
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 7.4 Gallon (28.0 L) Tank
- Gear Selection: Forward H-Forward L- Neutral-Reverse
- Ground Clearance: 12.0 in (30.5 cm)
- Horsepower (KW): 22 hp (16.4 kW)
- Key or Pedal Start: Key
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 26 ft (7.9 m)
- Overall Height: 76.4 in (194.1 cm)
- Overall Length: 114.4 in (290.5 cm)
- Overall Width: 60.7 in (123 cm)
- Parking Brake: Self-Compensating,Single-Point Engagement
- Power Source: 3 Cylinders 61.5 cu in (1,007 cc)
- Rear Axle Ratio: 20:1 (Low), 13.5:1
- Seating Capacity: 2-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 25 mph (40.2 kph)
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Front Independent MacPherson Struts, Rear Independent, Double A-Arms
- Tires: All-Terrain 25 x 10 - 12 in
- Towing Capacity: 1300 lb (589 kg)
- Transaxle: Differential Lock (Limited Slip Device)
- Valve Train: OHV
- Vehicle Load Capacity: 1600 lb (726 kg)
- Wheel Track: 49.7 in (126.2 cm) Front 49.8 in (126.4 cm) Rear
Features
- 14.3-cu-ft Cargo Bed
- 2-Passenger Seating
- 1,100-lb Bed Load Capacity
- 22-hp Diesel Engine
- 1,600-lb Vehicle Load Capacity
- 1,300-lb Towing Capacity
