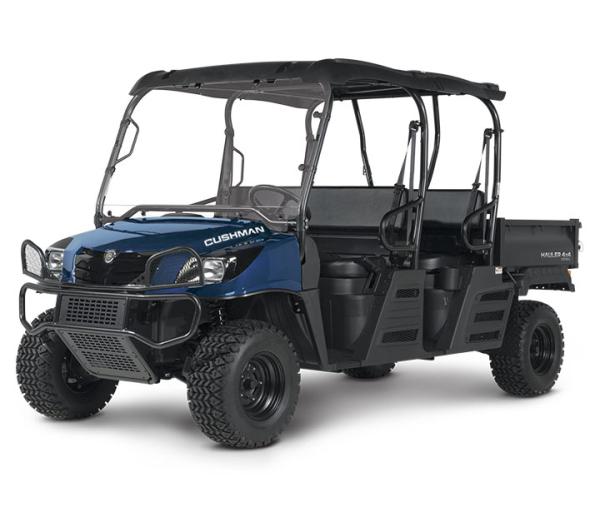

Cushman Hauler® 4x4 Crew
Overview
For jobs that require extra hands, the most important hauling involves not just cargo, but also the crew. The Hauler 4x4 Crew was built to carry the team, but four-passenger seating is just the start. A 22-hp diesel engine, 1,325-lb total load capacity, user-selectable 4WD and four-wheel independent suspension give this vehicle the ability to effectively haul big loads around just about any jobsite.
Specifications
- Air Cleaner: Dry-Cyclone Type
- Battery (Qty/Type): One, 12 Volt (690 CCA @ 0° F)
- Bed Load Capacity: 660 lb (300 kg)
- Body & Finish: Injection Molded Body
- Cargo Deck Capacity: 56.2 in x 38.5 in x 11.5 in (142.7 cm x (97.8 cm x 29.2 cm)
- Cargo Deck Material: Metal
- Cooling System: Liquid Cooled
- Curb Weight: 1852 lb (840 kg)
- Drive Train: Belt, Continuously Variable Transmission (CVT)
- Electrical System: Starter / Alternator
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 7.4 Gallon (28.0 L) Tank
- Gear Selection: Forward H-Forward L- Neutral-Reverse
- Ground Clearance: 12.0 in (30.5 cm)
- Horsepower (KW): 22 hp (16.4 kW)
- Key or Pedal Start: Key
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 35.4 ft (10.7 m)
- Overall Height: 76.4 in (194.1 cm)
- Overall Length: 146.7 in (372.5 cm)
- Overall Width: 60.7 in (123 cm)
- Parking Brake: Self-Compensating,Single-Point Engagement
- Power Source: 3 Cylinders 61.5 cu in (1,007 cc)
- Rear Axle Ratio: 20:1 (Low), 13.5:1
- Seating Capacity: 4-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 25 mph (40.2 kph)
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
- Tires: All-Terrain 25 x 10 - 12 in
- Towing Capacity: 1300 lb (589 kg)
- Transaxle: Differential Lock (Limited Slip Device)
- Valve Train: OHV
- Vehicle Load Capacity: 1325 lb (600 kg)
- Wheel Base: 108.7 in (276.1 cm)
- Wheel Track: 49.7 in (126.2 cm) Front 49.8 in (126.4 cm) Rear
Features
- 1,325-lb Vehicle Load Capacity
- 22-hp Diesel Engine
- 1,300-lb Towing Capacity
- 4-Passenger Seating
- 14.3-cu-ft Cargo Bed
- 660-lb Bed Load Capacity
