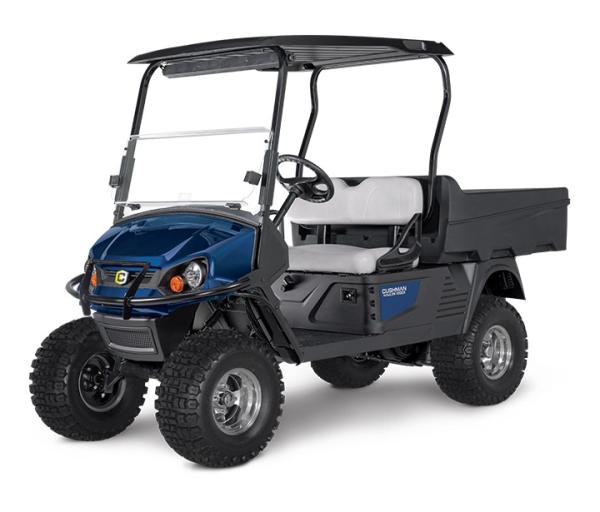

Cushman Hauler® 1200X

Request a Quote

Request a Quote

Personal Information

Address

Equipment

Comments

Overview

The Hauler® 1200X never backs down from a challenge. Armed with rugged tires, a lifted suspension and a dependable Kawasaki gas engine, it can take large loads of cargo wherever you need them.

Specifications

  • Air Cleaner: Dry Cartridge
  • Battery (Qty/Type): One, 12V Maintenance Free
  • Bed Load Capacity: 500 lb (227 kg)
  • Body & Finish: Injection Molded TPO
  • Cargo Deck Capacity: 12-cu-ft (0.34 m3)
  • Cargo Deck Material: Roto-Molded Polyethylene
  • Cooling System: Air Cooled
  • Curb Weight: 1003 lb (455 kg)
  • Drive Train: Continuously Variable Transmission (CVT)
  • Electrical System: Starter/Generator. Solid State Regulator
  • Frame: Welded Steel with DuraShield™ Powder Coat
  • Fuel Capacity: 6.0 Gallon (22.7 L) Tank
  • Gear Selection: Forward - Reverse
  • Ground Clearance: 7 in (17.8 cm)
  • Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
  • Key or Pedal Start: Pedal
  • Lubrication: Pressurized Oil System
  • Oil Filter: Spin-On
  • Outside Clearance Circle: 23.5 ft (7.2 m)
  • Overall Height: 52.5 in (133 cm) (w/o Roof) 77.0 in (195.6 cm) (w/ Struts & Roof)
  • Overall Length: 119 in (302.3 cm)
  • Overall Width: 49.4 in (125.5 cm)
  • Parking Brake: Self-Compensating, Single-Point Engagement
  • Power Source: 4-Cycle, 24.5 ci (401cc) Cylinder
  • Rear Axle Ratio: 11.42:1(Forward) 15.78:1(Reverse)
  • Seating Capacity: 2-Person
  • Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
  • Speed: 16.5 mph ± 0.5 mph (26.6 kph ± 0.8 kph)
  • Standard Color: Forest Green / Patriot Blue
  • Steering: Self-Compensating Rack & Pinion
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Tires: 20 x 8.00 - 10
  • Towing Capacity: 1200 lb (544 kg) max
  • Transaxle: Differential w/ Helical Gears
  • Valve Train: Single Cylinder OHV
  • Vehicle Load Capacity: 900 lb (408 kg)
  • Wheel Base: 77.5 in (196.9 cm)
  • Wheel Track: 38.0 in (96.5 cm) Front 38.5 in (97.8 cm) Rear

Features

  • 1,200-lb Towing Capacity
  • 13.5-hp Kawasaki® Gas Engine
  • 500-lb Bed Load Capacity
  • 900-lb Vehicle Load Capacity
  • 2-Passenger Seating
  • 12-cu-ft Cargo Bed
