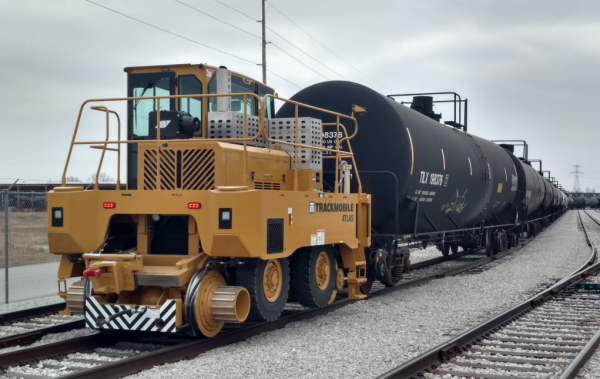

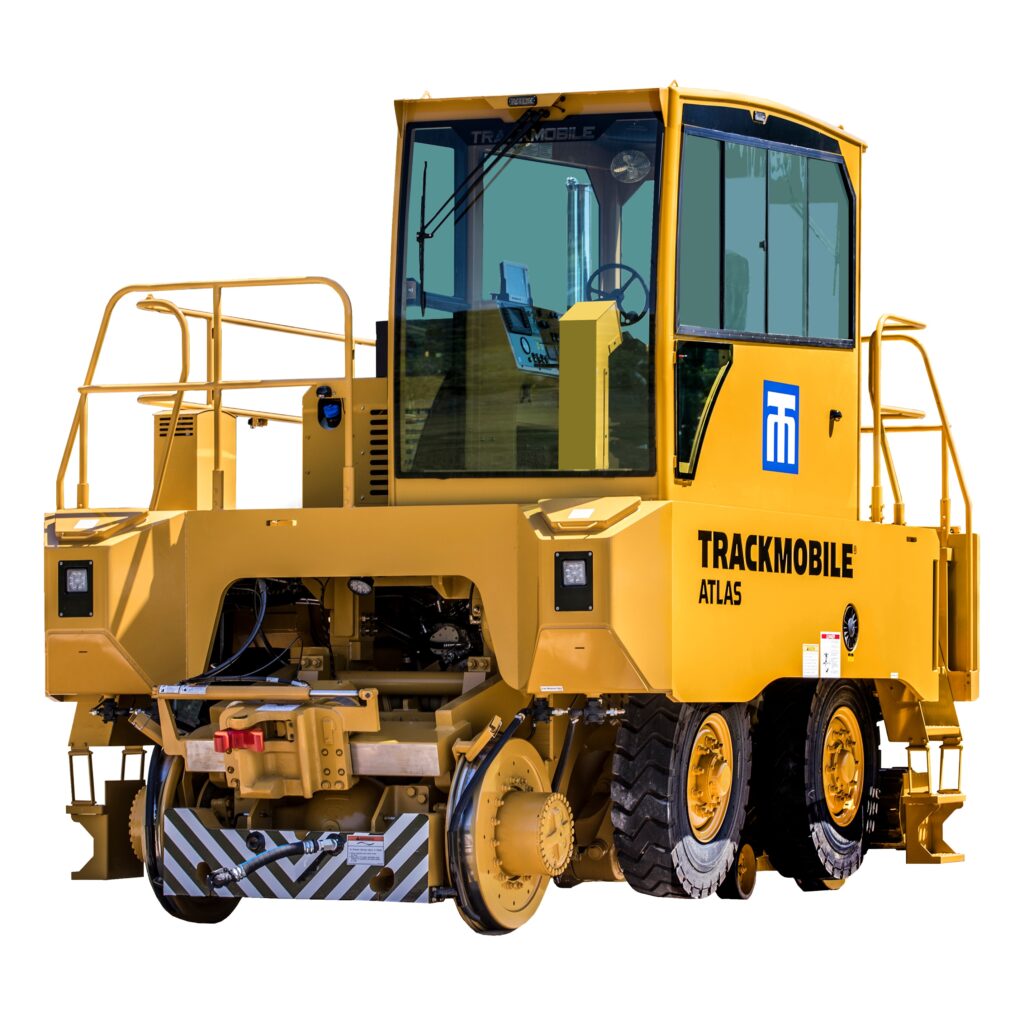

The Atlas is Trackmobile’s most rugged, heavy-duty model in their catalog. With up to 60,200 pounds of tractive effort, the Atlas is well-suited to higher-duty cycle applications and the most challenging rail conditions. The Trackmobile Atlas specs and features are all about power, performance, and operator comfort.

Trackmobile Atlas premier features include:

  • 33% faster wheel extension with the upgraded hydraulic roadwheel lift
  • Improved operator comfort with premium cab for noise reduction, miminized vibrations, & temperature control
  • Best-in-class performance on tight curves with upgraded traverse coupler control valve.
  • Long lasting forged steel wheels
  • Designed to meet all ANSI 26.1 standards

Trackmobile Atlas Railcar Movers for Sale in Chicago

As an authorized dealer of Trackmobile railcar movers, Voss Equipment is proud to provide rail and transit industry businesses in the Chicago area with new and used Trackmobile Atlas railcar movers for sale. We specialize in providing comprehensive product support for every railcar mover model we sell. When you need parts or service for your Trackmobile Atlas, you can count on our highly-trained service technicians and our huge in-stock Trackmobile parts inventory. Contact us today to request a quote on the Trackmobile Atlas.



Trackmobile Contact at Voss Equipment:

Jayme Bannerman jbannerman@vossequipment.com (708) 932-1865

Specifications

  • Body Frame: Heavy-duty, welded 2.5" steel deck plates and 1.25" side plates
  • Engine: Cummins 350 HP, QSL9 Turbo-charged Diesel
  • Mainframe: High-strength welded steel with 8' thick ballast plates and 4" thick structural plates
  • Pivoting frame: Heavy-duty 6" thick split pivoting mainframe and 8" thick mounting plate with oscillating bearing allow pivots up to 10
  • Rail and Road Drive: air activated locking differentials and outboard internal planetary axles Embedded LED headlights
  • Transmission: John Deere/Funk DF250 Powershift with torque converter

Features

  • Fire Extinguisher, 5 pounds
  • Heavy-duty Mine Service Foam Filled Tires
  • Train Air Charge Indicator
  • 35,000 BTU with 550 CFM HVAC
  • Underhood Engine and Work Lights
  • Upgraded Jumpseat
  • Patented MAX-Tran and MAX-Trac systems
