Zephir 7.90E / 10.90E / 13.90E

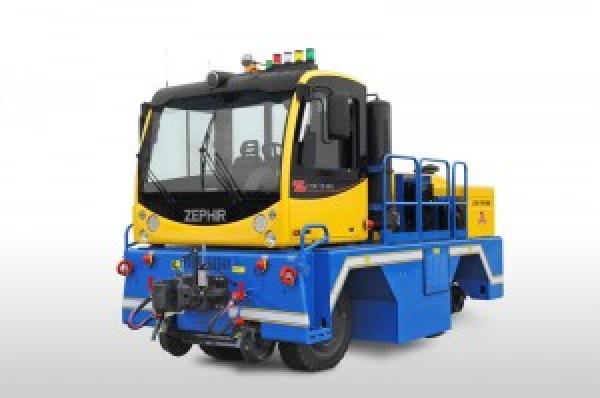

Zephir is pleased to present on the market LOK E, rail – road vehicle equipped with electrical motor.
Progression of LOK range, the LOK E has two 30 kW electrical motors (instead of diesel engine, one for each axle, 1000 Ah, 80 V battery powered.
This vehicle could be on and off – tracked from railways and it can cross tracks to perform cross terminal movements quickly and efficiently at a smaller costs than the LOK range.
LOK E range enhances the environmental role in Zephir strategies, that is more and more engaged in designing non – polluting vehicle.
| Drive | 7.90 E | 10.90 E | 13.90 E |
| Operator type (road mode) | Operator Seated | Operator seated | Operator seated |
| Dimensions (LxWxH) | 4800x2500x3400 | 4800x2500x3400m | 4800x2500x3400 |
| Service weight | 16t | 20t | 24t |
| Max. drawbar pull | 70kN | 100kN | 120kN |
| Max. towing capacity | 1400t | 2000t | 2600t |
| Max. rail speed unloaded/loaded | 7 km/h | 7/17 km/h | 7/17 km/h |
| Mechanical transmission- (fwd/rev) speeds | 1/1 | 2/2 | 2/2C) |
| Drive motors rating (power system, quantity) | 30 (AC) kW | 30 x 2 - (AC) kW | 30 x 2 - (AC) kW |
| On board battery charger | 80/150 x (2) V/Ah | 80/150 x (2) V/Ah | 80/150 x (2) V/Ah |
Specifications
- 10.90 E Dimensions : 4800x2500x3400mm
- 10.90 E Draw Bar Pull : 100 kN
- 10.90 E Max Towing Capacity: 2000 t
- 10.90 E Weight: 20 t
- 13.90 E Dimensions: 4800x2500x3400m
- 13.90 E Draw Bar Pull: 130 kN
- 13.90 E Max Towing Capacity: 2600 t
- 13.90 E Weight: 24 t
- 7.90 E Dimensions : 4800x2500x3400mm
- 7.90 E Draw Bar Pull : 70 kN
- 7.90 E Max Towing Capacity : 1400 t
- 7.90 E Weight: 16 t
Features
- Cold environment protection “Arctic pack”
- Engine star & stop
- Radio remote control, interlock, ground operator safety remote control
- Availability of different rail gauge measures
- Railtrack “short-circuit” signalling system and distance proximity sensors
- Pneumatic braking system
- Latest engines generation
- Extended Warranty
- Air conditioning inside the cabin
- Wide range of hooks, couplers and tow bars
