The four Reach Series Telescopic handlers offered by Load Lifter continue our tradition of superior performance and unmatched operator visibility. Fast, responsive hydraulics make the Reach series an industry leader in job site material handling. Operator modules offer the latest in controls and ergonomics, providing operators everything they need for productive material placement and workplace efficiency. Reach series telescopic handlers cover three different capacity ranges. The 518 model is 5,500 lbs. capacity with a lift height of 18 feet 4 inches. The 642-G model is 6,000 lbs. capacity with a lift height of 42 fee. The 842-G model is 8,000 lbs. capacity with a lift height of 42 feet. Our largest model is the 1056-G which is 10,000 lbs. capacity and an overall lift height of 56 feet. Each of these models offer a wide range of attachments making the Reach series the industry’s choice for Telescopic handlers.

FEATURES AND BENEFITS

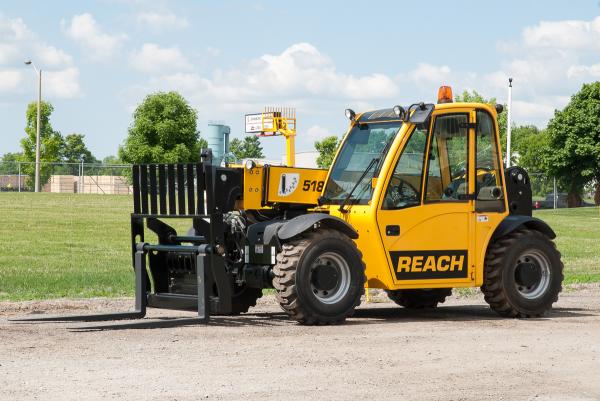

518 Reach

  • Quick Attach System
  • Compact, manoeuvrable design
  • Ergonomic controls
  • 5500 lbs. capacity, 18 feet 4 inches lift height
  • Superior 360 visibility
  • Low profile boom design
  • R.O.P.S. & F.O.P.S. operators module
  • 4 cylinder engine (Tier 4 Final)
  • Hydrostatic drive, 3 steering modes (2 wheel, 4 wheel & crab)
  • Full instrumentation
  • 15 mph travel speed
  • Low Profile (75.6″)
  • Full range of attachments available
  • North American Manufactured

642-G Reach

  • 6000 lbs. capacity, 42″ lift height.
  • Superior 360 degree visibility
  • Low profile boom design
  • R.O.P.S. & F.O.P.S. operators module
  • Advanced load sense hydraulic system
  • High strength boom assembly
  • Welded box frame structure
  • Stable, responsive, jobsite performance
  • Standard “pro-attach system”
  • Full range of available attachments
  • North American manufactured

842-G Reach

  • 8000 lbs. capacity, 42″ lift height.
  • Superior 360 degree visibility
  • Low profile boom design
  • R.O.P.S. & F.O.P.S. operators module
  • Advanced load sense hydraulic system
  • High strength boom assembly
  • Welded box frame structure
  • Stable, responsive, jobsite performance
  • Standard “pro-attach system”
  • Full range of available attachments
  • North American manufactured

1056-G Reach

  • 10,000 lbs. Capacity, 56 foot lift height
  • Superior 360 degree visibility
  • Low profile boom design
  • R.O.P.S. & F.O.P.S. (Certified Roll Over& Fall Protective Structures), operators module
  • Heavy duty, four section boom assembly
  • Perkins 129 hp Electronic EPA compliant diesel engine
  • Safety start, Dedicated 4WD
  • Three steering modes (2 wheel, round & crab), Load leveler frame
  • Front Stabilizers “New Design”
  • 3 speed Dana 20,000 series electronic full Power Shift transmission
  • Load sense hydraulic system
  • Parker IQAN MC2 system (Machine hydraulic safety controls)
  • Full range of available attachments
  • North American manufactured
