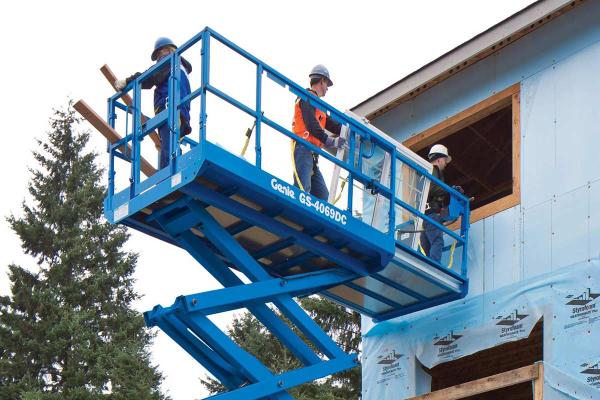

Equipped with a patented full-time oscillating axle automatically adjusts the axle position based on ground conditions, the Genie® GS-4069 DC rough terrain slab scissor lift is excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces.

Overview

  • Full-drive working height
  • Can easily be driven through dirt, sand and mud between tasks.
  • Quiet, electric-drive motor for emissions-free performance
  • 800-lb (363 kg) lift capacity

Specifications

  • Max Working Height: 46 ft 3 in | 14.12 m
  • Machine Length: 10 ft 3 in | 3.12 m
  • Machine Width: 5 ft 9 in | 1.75 m
  • Capacity: 800 lb | 363 kg
  • Weight: 10,856 lb | 4,924 kg

Additional Information

Options

Chassis Options

  • High capacity batteries, 315 Ah (standard on GS-4069)
  • Automatic leveling hydraulic outriggers
  • Power inverter, 800W, 48V DC, 120V AC, 60 Hz

Chassis – Tire Options

  • Rough terrain, non-marking foam-filled tires (petroleum based)
  • High flotation foam-filled non-marking  tires

Platform Options

  • Air line to platform:  ? in. inner diameter
