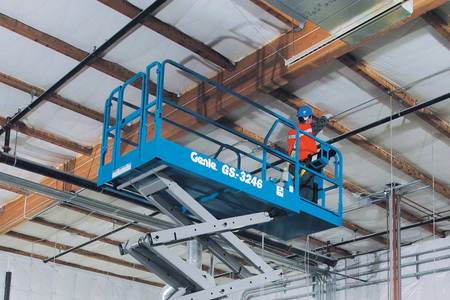

Boasting front-wheel drive and zero inside turning radius, the Genie® GS-3246 slab scissor lift is excellent for indoor and outdoor construction, maintenance and installation applications on firm, level surfaces. It’s quiet, zero-emission electric operation is ideal for sound-sensitive environments.

Overview

  • 39-in (1 m) roll-out platform extension
  • Proportional controls for lift and drive functions
  • Multiple disc brakes provide smooth deceleration
  • Emergency stop at both platform and ground controls — and a tilt sensor with an audible alarm — for added safety

r use

Specifications

  • Weight: 5,211 lb | 2,364 kg
  • Max Working Height: 38 ft | 11.75 m
  • Capacity: 700 lb | 318 kg
  • Machine Width: 3 ft 10 in | 1.16 m
  • Machine Length: 8 ft | 2.44 m

Additional Information

Options

Chassis Options

  • AGM maintenance-free batteries
  • Automotive-style horn
  • Biodegradable hydraulic oil
  • Biodegradable hydraulic oil(for GS-3232, GS-3246)
  • Power inverter, 800W,  24V DC,  120V AC, 60 Hz

Certification Options

  • EE Certification

Platform Options

  • Air line to platform:  ? in. inner diameter
