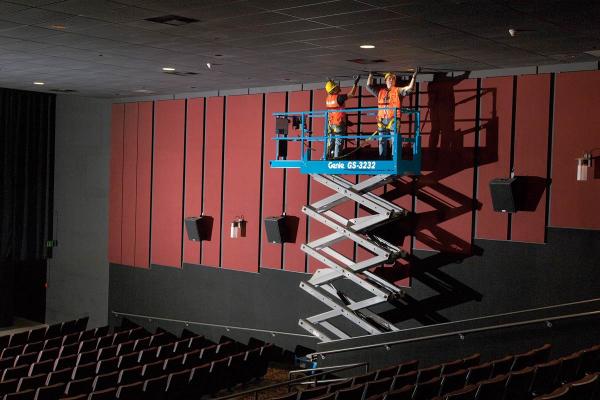

The quiet, zero-emission Genie® GS™-3232 slab scissor lift is ideal for operation in sound-sensitive environments. With front-wheel drive and zero inside turning radius, it boasts excellent maneuverability in tight spaces. It is purpose-built to perform in indoor and outdoor construction, maintenance and installation applications on firm, level surfaces.

Overview

  • Automatic leveling hydraulic outrigger system levels machine on slopes up to 5˚
  • Link stack is centered at full elevation and platform extension for machine rigidity
  • Compact dimensions and folding guardrails — easily passes through standard single or double doors
  • 3-ft (.91 m) extension deck provides maximum platform workspace for workers and tools

Specifications

  • Capacity: 500 lb | 227 kg
  • Machine Width: 2 ft 8 in | 0.81 m
  • Machine Length: 8 ft | 2.43 m
  • Weight: 5,185 lb | 2,352 kg
  • Max Working Height: 37 ft 8 in | 11.50 m

Additional Information

Options

Chassis Options

  • AGM maintenance-free batteries
  • Automotive-style horn
  • Biodegradable hydraulic oil
  • Biodegradable hydraulic oil(for GS-3232, GS-3246)
  • Power inverter, 800W,  24V DC,  120V AC, 60 Hz

Certification Options

  • EE Certification

Platform Options

  • Air line to platform:  ? in. inner diameter
