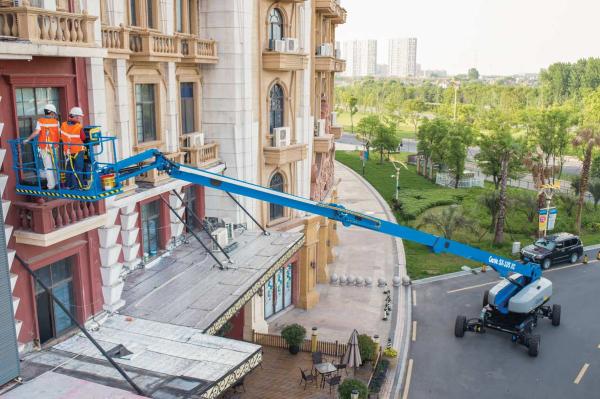

The Genie® SX™-105 XC™ telescopic boom is engineered to work in more applications that require higher capacities. With industry-leading dual lift capacity — 660-lb (300 kg)/1,000-lb (454 kg) — and a smooth operating envelope, this Genie XC boom is perfect fit for heavy lifting in construction, bridge inspections and maintenance, stadiums and sports arenas, oil and gas, industrial, telecommunications and utility applications.

Overview

  • Mini Genie XChassis™ design for compact transportation and work in confined areas
  • Load sense technology for accurate load weighing and zero-load field calibration
  • Extended reach out and down capability with 8 ft 1 in (2.69 m) of reach below grade

** Maximum outreach zone / maximum capacity zone.



Specifications

  • Platform Capacity: 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted / 454 kg Restricted
  • Max Working Height: 111 ft | 34 m
  • Machine Width and Length: 12 ft 11 in / 46 ft 9 in | 3.94 m / 14.25 m
  • Max Horizontal Reach: 80 ft | 24.38 m
  • Below Ground Reach: 8 ft 10 in | 2.69 m

Additional Information

Options

Engine Options

  • Diesel intake air pre-cleaner
  • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, and hydraulic tank heater

Lift/Turntable Options

  • Hostile environment kit: Cylinder bellows, boom wiper seals, air pre-cleaner, and ring gear guard

Platforms

  • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
  • 6 ft. dual entry platform with side swing gate

Platform Options

  • Panel cradle package
  • Platform auxiliary top rail
  • Thumb rocker steering
  • Welder – Select Lincoln or Miller
  • Traveling fall arrest anchor system: requires 6ft platform
  • Traveling fall arrest anchor system: requires 8ft platform
