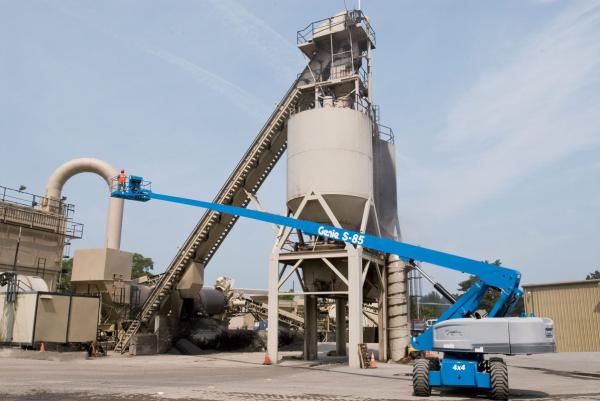

The Genie® S®-80X and S-85 telescopic booms offer greater horizontal outreach than any other type of aerial platform, making these machines the perfect choice for work in construction and industrial applications with limited access.
Overview
Genie S-80X
- 71 ft 6 in (21.80 m) of horizontal reach
- 360˚continuous rotation turntable for quick positioning
- Smooth boom functions for finer control
- Virtual pivot primary boom aligns the machine’s center of gravity to work efficiently with a lower machine weight
Genie S-85
- 76 ft 6 in (23.30 m) of horizontal reach
- 360˚continuous rotation turntable for quick positioning
- Smooth boom functions for finer control
- Virtual pivot primary boom aligns the machine’s center of gravity to work efficiently with a lower machine weight
Specifications
- Below Ground Reach: S-80: 6 ft 1 in / S-85: 9 ft 6 in | S-80: 1.85 m / S-85: 2.9 m
- Machine Width and Length: S-80: 8 ft 2 in / 36 ft 10 in | S- 85: 8 ft 2 in / 40 ft 4 in | S-80: 2.49 m / 11.23 m | S-85: 2.49 m / 12.29 m
- Max Horizontal Reach: S-80: 71 ft 6 in / S-85: 76 ft 6 in | S-80: 21.79 m / S-85: 23.32 m
- Max Platform Height: S-80: 80 ft / S-85: 85 ft | S-80: 24.38 m / S-85: 25.91 m
- Platform Capacity: S-80: 500 lbs/1,000 lbs | S-85: 500 lbs | S-80: 227 kg/ 454 kg | S-85: 227 kg
