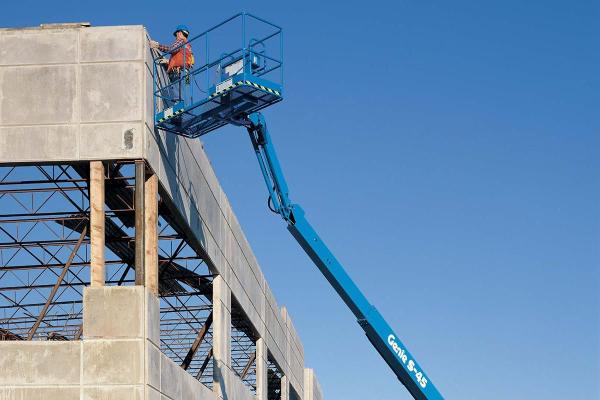

Genie® S®-40 and S®-45 telescopic booms increase productivity with the traction and drive speed needed to get around jobsites and work areas. These units are designed to easily maneuver in tight spaces on construction and industrial sites.
Overview
- 360˚continuous rotation turntable for quick positioning
- Automatic axle position adjustments for the increased terrainability and positive traction drive to maintain equal power to all drive wheels
- Rotating, self-leveling platform with hydraulic platform rotation for easy positioning
- Dual-fuel (gas or LPG) options available for indoor/outdoor applications
Specifications
- Below Ground Reach: S-40: 3 ft 2 in/ S-45: 4 ft 11 in | S-40: 0.97 m/ S-45: 1.5 m
- Machine Width and Length: S-40: 7 ft 6 in, 24 ft 3 in / S-45: 7 ft 6 in , 27 ft 10 in | S-40: 2.30 m, 7.39 m / S-45: 2.30 m, 8.48 m
- Max Horizontal Reach: S-40: 31 ft 8 in/ S-45: 36 ft 8 in | S-40: 9.67 m/ S-45: 11.12 m
- Max Working Height: S-40: 46 ft/ S-45: 51 ft | S-40: 14.20 m/ S-45: 15.72 m
- Platform Capacity: 500 lb | 227 kg
